Ergo 3 Self Propelled

SKU: Ergo 3 Self Propelled

(0 reviews)
Be the first to review this product

The Next Generation of Lightweight Mobility

The Karma Ergo Series combines ergonomic design with lightweight mobility to provide natural support from head to lower back, making it easier to stay upright and engage socially with comfort. Featuring the patented Ergo Back and the trusted S-Ergo Seat, the Ergo 3 offers a new level of seating comfort where form and function meet.

SKU
Ergo 3 Self Propelled
£545.00 £654.00

VAT exemption available at checkout. Click for more info

-
+
Add to Wish List

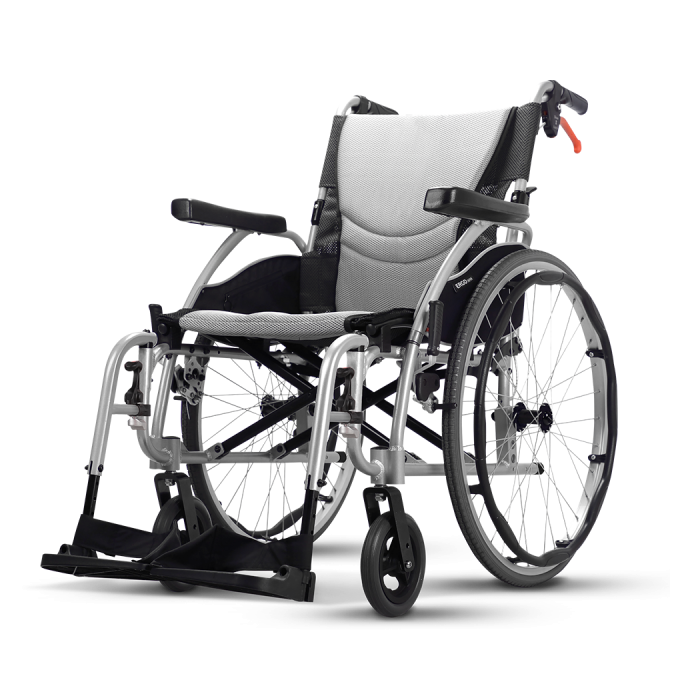

main product photo

Technical Info

  • Vat Exempt Yes
  • Product Model Ergo 3
    Nominal seat width (mm/in)* 410 / 16 460 / 18 510 / 20 410 / 16 460 / 18 510 / 20 410 / 16 460 / 18 510 / 20
    Nominal seat depth (mm/in)** 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17
    Front caster / Rear wheel size (in) 6 / 14
    7 / 14    		 6 / 14
    7 / 14    		 6 / 14
    7 / 14    		 6 / 20
    7 / 20    		 6 / 20
    7 / 20    		 6 / 20
    7 / 20    		 7 / 24 7 / 24 7 / 24
    Backrest height (mm) 435 435 435 435 435 435 435 435 435
    Headrest height above seat (mm) N/A N/A N/A N/A N/A N/A N/A N/A N/A
    Armrest to seat distance (mm) 220 220 220 220 220 220 220 220 220
    Front location of armrest structure (mm) 0
    350    		 0
    350    		 0
    350    		 0
    350    		 0
    350    		 0
    350    		 0
    350    		 0
    350    		 0
    350
    Seat surface height at front edge (mm) 435
    485    		 435
    485    		 435
    485    		 435
    485    		 435
    485    		 435
    485    		 485 485 485
    Footrest to seat distance (mm) 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460
    Effective seat width (mm) 420 470 520 420 470 520 420 470 520
    Effective seat depth (mm) 435 435 435 435 435 435 435 435 435
    Seat plane angle (X°) 6 6 6 6 6 6 6 6 6
    Backrest angle (X°) 20 20 20 20 20 20 20 20 20
    Seat to backrest angle (X°) 104 104 104 104 104 104 104 104 104
    Leg to seat angle (X°) 105 105 105 105 105 105 105 105 105
    Overall length with legrest (mm) 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050
    Overall width (mm) 575 625 675 595 645 695 595 645 695
    Overall height (mm) 860
    910    		 860
    910    		 860
    910    		 860
    910    		 860
    910    		 860
    910    		 860
    910    		 860
    910    		 860
    910
    Folded length (mm) 770 (Q14)***
    770 (F14)****    		 770 (Q14)
    770 (F14)    		 770 (Q14)
    770 (F14)    		 770 (Q20)
    780 (F20)    		 770 (Q20)
    780 (F20)    		 770 (Q20)
    780 (F20)    		 770 (Q24)
    820 (F24)    		 770 (Q24)
    820 (F24)    		 770 (Q24)
    820 (F24)
    Folded width (mm) 245 (Q14)
    285 (F14)    		 245 (Q14)
    285 (F14)    		 245 (Q14)
    285 (F14)    		 245 (Q20)
    310 (F20)    		 245 (Q20)
    310 (F20)    		 245 (Q20)
    310 (F20)    		 245 (Q24)
    310 (F24)    		 245 (Q24)
    310 (F24)    		 245 (Q24)
    310 (F24)
    Folded height (mm) 660 (Q14)
    700 (F14)    		 700 (Q14)
    735 (F14)    		 740 (Q14)
    780 (F14)    		 660 (Q20)
    700 (F20)    		 700 (Q20)
    735 (F20)    		 740 (Q20)
    780 (F20)    		 660 (Q24)
    700 (F24)    		 700 (Q24)
    735 (F24)    		 740 (Q24)
    780 (F24)
    Total mass (kg) 11.9
    12.3    		 12.2
    12.6    		 12.5
    12.9    		 13.1
    13.3    		 13.4
    13.6    		 13.7
    13.9    		 13.8 14.1 14.4
    Mass of the heaviest part (kg) 8.0
    8.4
    (Q14)    		 8.3
    8.7
    (Q14)    		 8.6
    9.0
    (Q14)    		 8.2
    8.4
    (Q20)    		 8.5
    8.7
    (Q20)    		 8.8
    9.0
    (Q20)    		 8.4
    (Q24)    		 8.7
    (Q24)    		 9.0
    (Q24)
    10.1
    10.5
    (F14)    		 10.4
    10.8
    (F14)    		 10.7
    11.1
    (F14)    		 11.3
    11.5
    (F20)    		 11.6
    11.8
    (F20)    		 11.9
    12.1
    (F20)    		 12.0
    (F24)    		 12.3
    (F24)    		 12.6
    (F24)
    Maximum user weight (kg)***** 115 115 115 115 / 125 115 / 125 115 / 125 115 / 125 115 / 125 115 / 125
    Minimum turning radius (mm) 895 900 910 895 900 910 895 900 910
    Minimum turning radius without user (mm) 745 750 760 745 750 760 745 750 760
    Pivot width (mm) 1115 1135 1155 1115 1135 1155 1115 1135 1155
    Static stability downhill (X°) 14 14 14 14 14 14 14 14 14
    Static stability uphill (X°) 14 14 14 14 14 14 14 14 14
    Static stability sideways (X°) 14 14 14 14 14 14 14 14 14
    Handrim diameter (mm) N/A N/A N/A 435 435 435 520 520 520
    Horizontal location of axle (mm) 45 45 45 45 45 45 45 45 45
