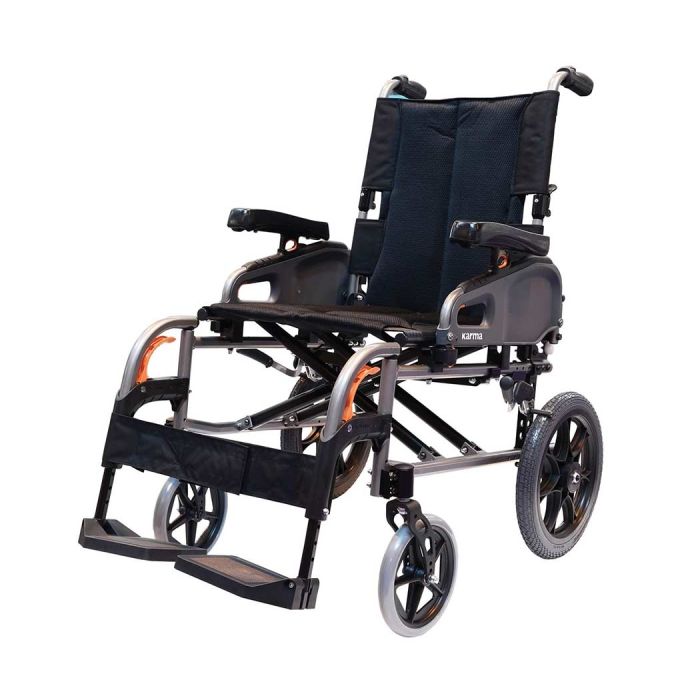

Flexx Heavy Duty Transit Wheelchair

SKU: Flexx Heavy Duty Transit Wheelchair

(0 reviews)

The Flexx Series is all about comfort, support, and performance. If you are ae user looking for an ideal custom-made wheelchair, explore the many options that the Flexx Series has to offer and find the right combination to match you and your needs. Flexx has a folding backrest as standard for convenient storage and easy handling.

The Flexx HD is the  heavy-duty version of the standard Flexx wheelchair. It can support up to 170kg and features extra large seat options with larger width and depth. The sturdy double cross brace and adjustable centre-of-gravity provide better stability. All the Flexx accessories are compatible with the Flexx HD.

SKU
Flexx Heavy Duty Transit Wheelchair
£895.00 £1,074.00
-
+

Technical Info

  • Vat Exempt Yes
  • Product Model Flexx HD (KM-8022 HD、KM-8522 HD)
    Nominal seat width (mm) 500 550 600
    Caster x Rear wheel size (in) 7 x 14Q / 8 x 14Q
    Maximum user weight (kg) 170
    Overall length with legrest (mm) 1080 ~ 1200
    Overall width (mm) 680 730 780
    Overall height (mm) 920 ~ 950
    Folded length (mm) 1050 ~ 1130
    Folded width (mm) 320 ~ 330
    Folded height (mm) 740 ~ 835
    Total mass (kg) 17.4 ~ 18.8
    Mass of the heaviest part (kg) 14.1 ~ 14.9
    Handrim diameter (mm) N/A
    Horizontal location of axle (mm) 60
    Minimum turning radius (mm) 950 ~ 1030
    Minimum turning radius without
    user (mm)
    930 ~ 935
    Pivot width (mm) 1265 ~ 1415
    Static stability downhill (X°) >16
    Static stability uphill (X°) 11.8
    Static stability uphill with
    anti-tippers (X°)
    N/A
    Static stability sideways (X°) >16
    Seat plane angle (X°) 7
    Effective seat depth (mm) 420 ~ 520
    Nominal seat depth (mm) 390 ~ 490
    Effective seat width (mm) 540 590 640
    Seat surface height at front edge (mm) 460 ~ 530
    Backrest angle (X°) 13
    Seat to backrest angle (X°) 96
    Backrest height (mm) 430 / 510
    Headrest height above seat (mm) N/A
    Leg to seat angle (X°) 98
    Footrest to seat distance (mm) 360 ~ 470
    Armrest to seat distance (mm) 210 ~ 290
    Front location of armrest structure (mm) 355
