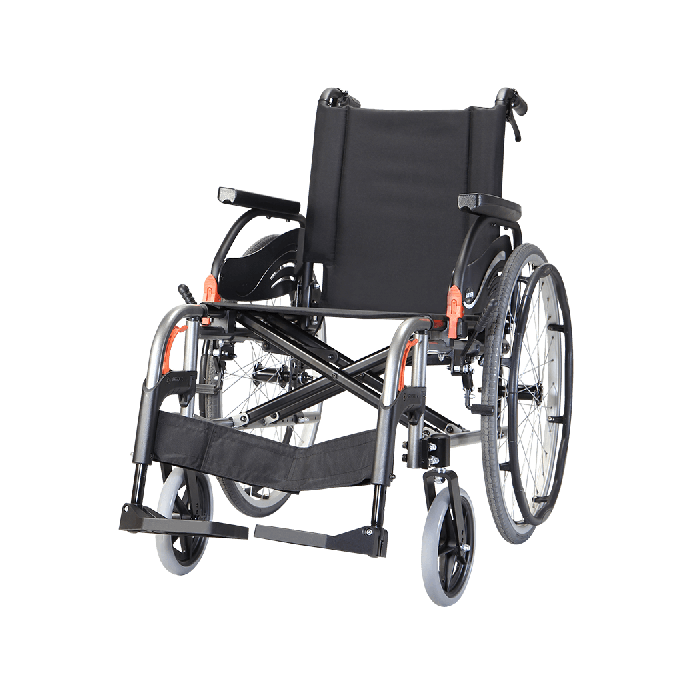

Flexx Self-Propelled Wheelchair
SKU: Flexx Self-Propelled Wheelchair
(0 reviews)
Comfortable Seating and Easy Transfer The Flexx Series is all about comfort, support, and performance. If you are looking for an ideal custom-made wheelchair, explore the many options that the Flexx Series has to offer and find the right combination to match you and your needs.
The Flexx S is equipped with many adjustable features like rear wheel axle position, backrest angle, backrest height, and seat depth, just to name a few. With the elliptical-frame design, the Flexx wheelchair is not only stylish but also robust and durable. Flexx has a folding backrest as standard for convenient storage and easy handling.
SKU Flexx Self-Propelled Wheelchair
£660.00
£792.00
Technical Info
Vat Exempt
Yes
Nominal seat width (mm/in)*
350 / 14
375 / 15
400 / 16
425 / 17
450 / 18
475 / 19
500 / 20
Nominal seat depth (mm/in)
415 ~ 465 / 16 ~ 18
Front caster / Rear wheel size (in)
7 / 24 、 8 / 24
Backrest height (mm)
430
430
430
430
430
430
430
Headrest height above seat (mm)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Armrest to seat distance (mm)
225 ~ 245
Front location of armrest structure
365
365
365
365
365
365
365
Seat surface height at front edge (mm)
390 ~ 530
Footrest to seat distance (mm)
315 ~ 415
Effective seat width (mm)
380
405
430
455
480
505
530
Effective seat depth (mm)
595 ~ 645
Seat plane angle (X°)
5
5
5
5
5
5
5
Backrest angle (X°)
7 ~ 27
Seat to backrest angle (X°)
92 ~ 112
Leg to seat angle (X°)
98
98
98
98
98
98
98
Overall length with legrest (mm)
1025 ~ 1105
Overall width (mm)
555
580
605
630
655
680
705
Overall height (mm)
900 ~ 925
Folded length (mm)
815 ~ 865
Folded width (mm)
290
290
305
305
320
320
335
Folded height (mm)
610 ~ 730
Total mass (kg)
15.1 ~ 15.9
Mass of the heaviest part (kg)
10.0 ~ 10.7
Maximum user weight (kg)
130
130
130
130
130
130
130
Minimum turning radius (mm)
855 ~ 935
Minimum turning radius without
725 ~ 805
Pivot width (mm)
1225 ~ 1305
Static stability downhill (X°)
15
15
15
15
15
15
15
Static stability uphill (X°)
11
11
11
11
11
11
11
Static stability sideways (X°)
18
18
18
18
18
18
18
Handrim diameter (mm)
520
520
520
520
520
520
520
Horizontal location of axle (mm)
10
10
10
10
10
10
10
